PPP-SR

PPP-SR One to Four Port Sync to Async PPP Converter

Composite rate to 128 Kbps
RS-232 interface @ 57.6 or 115.2 Kbps
One or four port models
Converts sync PPP protocol to async PPP
"AT" command spoofing for Microsoft Windows95 and similar dialers
Use over DDS or DDS/frame relay
Ideal for Internet or intranets
Sync RS-232 network or built-in 56/64Kbps DSU
Cost effective versus router + NIC + DSU
Reliable, high speed private line service alternative to dial up modems

FEATURES
DESCRIPTION
SPECIFICATIONS

General
Indicators (front panel)
Controls
Telco
Data Port
Physical/Electrical

HOW TO ORDER

FEATURES

Composite rate to 128 Kbps
RS-232 interface @ 57.6 or 115.2 Kbps
Converts sync PPP protocol to async PPP
"AT" command spoofing for Microsoft Windows95 dialer and similar dialers
Use over DDS or DDS/frame relay
Ideal for Internet or intranets
One or four async PPP ports
Sync network port or built-in 56/64 Kbps DSU
Cost effective versus router + NIC + DSU
Reliable, high speed private line service alternative to dial up modems

The DCB PPP-SR translates synchronous PPP to async PPP. It connects remote PCs to the Internet and/or intranet. The PPP-SR accepts IP encapsulated in frame relay PPP or sync PPP from the host router. It converts these protocols to async PPP and passes that to the PCs through its async com ports.

The PPP-SR mimics a generic modem handshake to allow PCs using Microsoft Windows95 (and similar Internet dialers) to use the built in dial-up-networking function, including its PPP protocol. Just select the generic high speed modem, set up a fixed or dynamic TCP/IP address, and go on-line.

The hardware cost savings provide a compelling reason to use the PPP-SR. It is especially cost effective where the host delivers a number of PPP synchronous DS-0 digital channels to the phone company via T1 access multiplexing or frame relay. The PPP-SR is a very cost effective alternative to ISDN. In many areas, phone companies charge ISDN users per minute usage rates. When using frame relay, the PPP-SR can be even more financially attractive.

The PPP-SR is easy to install and operate. Controls on the unit include the loopback push button on the front panel and the Setup switch, used to set the asynchronous terminal interface to 115,200 if the user chooses not to use the default rate of 57,600 bps. The minimum number of controls and comprehensive indicators make installation and troubleshooting easy. Diagnostic aids built into the PPP-SR include LED indicators and loopback capabilities. .

SPECIFICATIONS

General

Rates: Up to 128 Kbps synchronous composite, async port rate to 115,200 bps
Application: Point-to-point
Composite and async ports are RS-232.
Supports DDS or frame relay composites to 128 Kbps
RS-232 composite or built-in 56/64 Kbps DSU

Indicators (front panel)

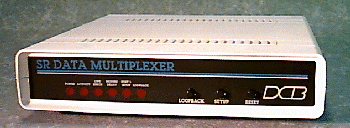

Power, Activity, Line Error, Modem Ready, Port 1 Setup, Loopback

Controls

Front panel push button for loopback.
Side door accessible firmware cartridge for installing firmware upgrades
Setup via the "Port One Setup", activated by the front panel push-button, or setup via rear panel setup port

Data Port

Interface: RS-232, V.24, speeds up to 115,200 bps
Connector: RJ-45 per EIA/TIA 561 pin outs

Physical/Electrical

Power requirements: 120 VAC, wall mount power supply
60 Hz, 18 Watts
10 1/4" x 9 3/4" x 2 1/4"
One pound

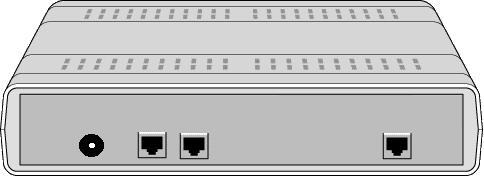

Rear view of DCB PPP-SR-01

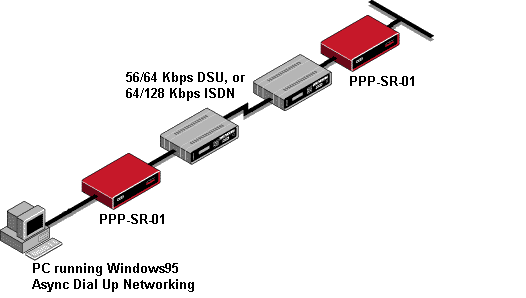

Application

How to Order

PPP-SR-01	1 Port Sync to Async PPP Translator, uses external DSU or IDSN Terminal Adapter	$595
PPP-SR-04	4 Port Sync to Async PPP Translator, uses external DSU or IDSN Terminal Adapter	$795
PPP-SR-01/DSU*	PPP-SR-01 with internal DSU	$695
PPP-SR-04/DSU*	PPP-SR-04 with internal DSU	$895

* See PPP-DSU data sheet for a full description of the product
